R850 Adhoc Manpack Repeater

The R850 is a high-performance emergency communication device designed for rapid deployment and decentralized networking. It is suitable for complex scenarios such as field rescue and disaster relief. The device features a 2.2-inch full-color display and an intuitive button design for easy operation. It supports DMR, PDT digital formats, and analog communication. With a lightweight body, IP67 protection rating, and options for carrying or fixed installation, the R850 offers up to 20 hours of battery life, making it an efficient communication solution for outdoor operations and emergency rescue missions.

Send Inquiry

Product Description

Product Specification:

General
Antenna Impedance	50Ω	Channel Capacity	500
Frequency Range	136-174MHz,350-400MHz 400-470MHz,450-520MHz	Ingress Protection (IP) Rating	IP67
Channel Spacing	12.5KHz / 25KHz	Dimension(WDL)	189119300mm (W x H x L)
Work Voltage	Rated: 13.6V DC Range: 12-16.8V Adaptor AC: 220V 50Hz	Type	Analog: DQT/CTCSS/DTMF Digital: DMR
Weight	≤4.5kg	LCD	2.2-inch

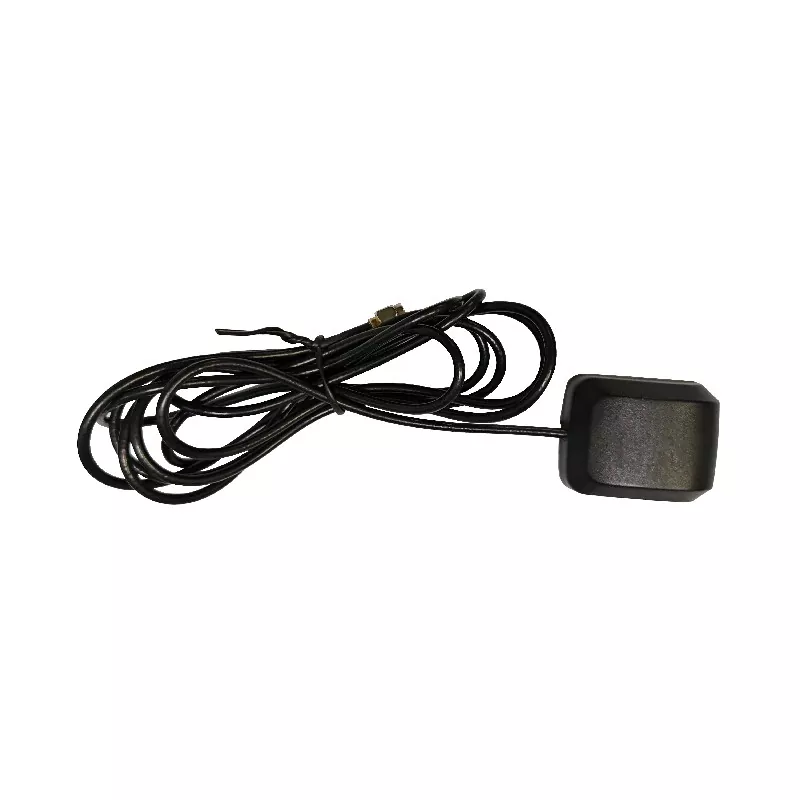

Positioning	Beidou / GPS	Battery Life	≥ 20 Hours
Transmitter
TX Power	10W/25W	Frequency Stability	±0.5ppm
Conducted Radiated Spurious Emission	-36dBm@<1GHz, -30dBm@>1GHz	FSK Error	＜2%
Adjacent Channel Power	≤-60dB @12.5KHz ≤-70dB @25KHz	Adjacent Channel Transient Power	≤-50dB @12.5KHz /≤-60dB @25KHz
4FSK Digital Modulation	12.5KHz (data only) : 7K60FXD 12.5KHz (data＋voice) : 7K60FXE	Frequency response	+1dB, -3dB
Receiver
Frequency Stability	± 0.5 ppm	Sensitivity	Analog≦0.22uV (@12dB Sinad) Digital≦0.22uV (5% BER)
Frequency Selective	≧70dB@25kHz ≧60dB@12.5kHz	Intermodulation	65dB
Spurious suppression	70dB	Block	90dB
Audio Frequency Response	+1dB, -3dB
Others

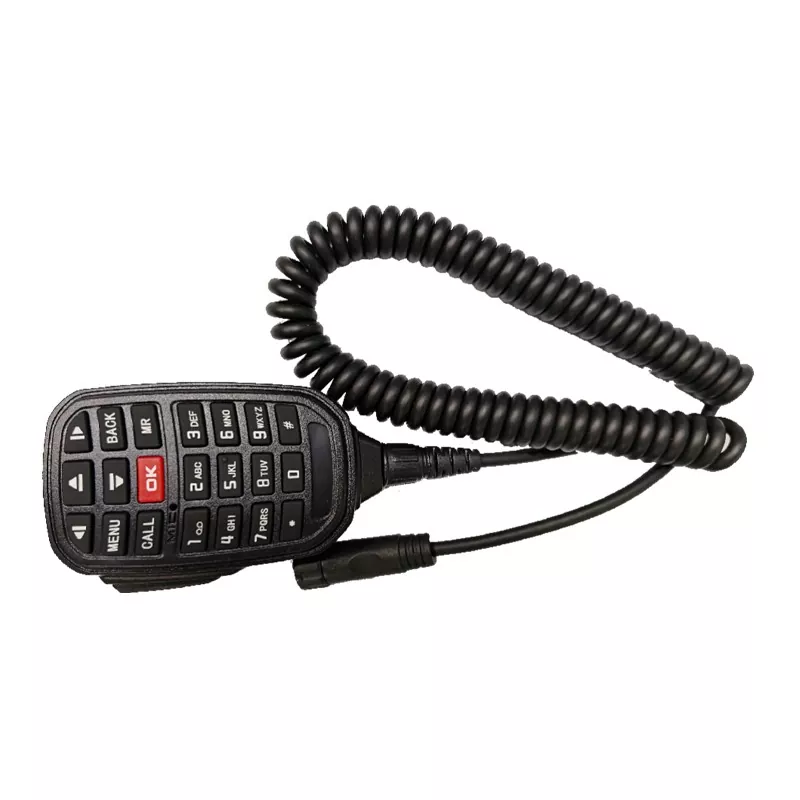

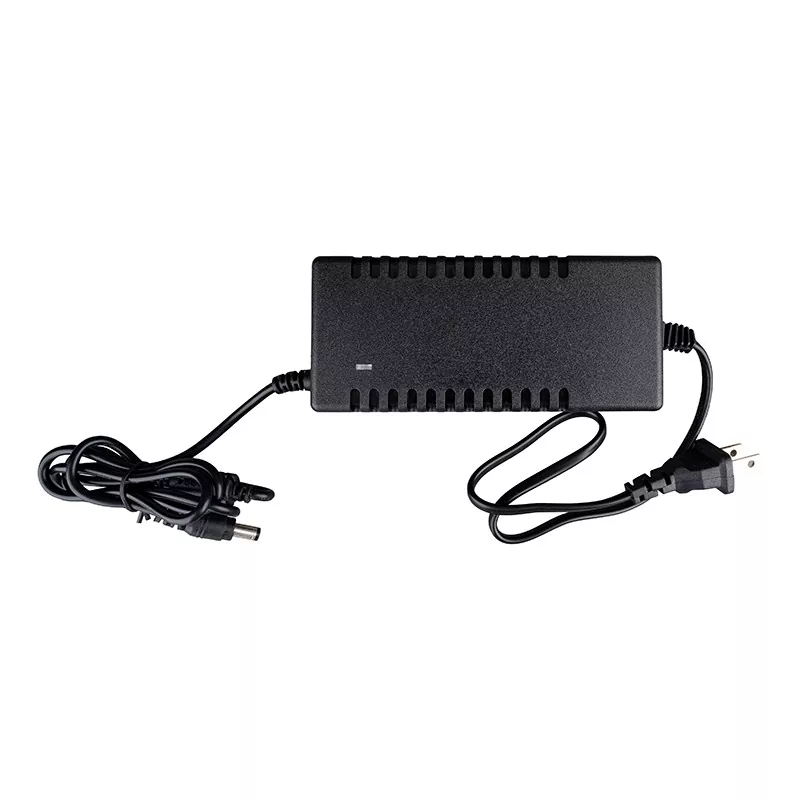

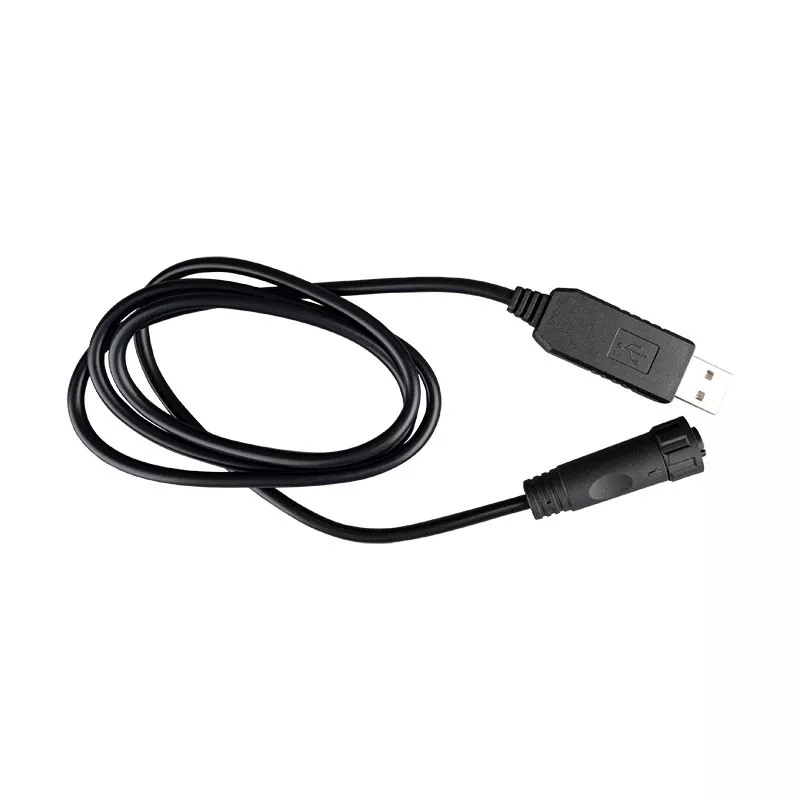

Power Supply	Detachable battery pack or 220V AC power supply through adapter	Standard Accessory	Microphone, Programming,Cable, etc.
Output Voltage	12-16.8V DC	Operating Temperature	-30℃ - +60℃
Battery Pack Capacity (Ah)	≥15 Ah	Main Materials	The main unit is made of high-strength aluminum alloy and high-strength engineering plastics

Note: The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above indicators are subject to change without prior notice.

Product Details:

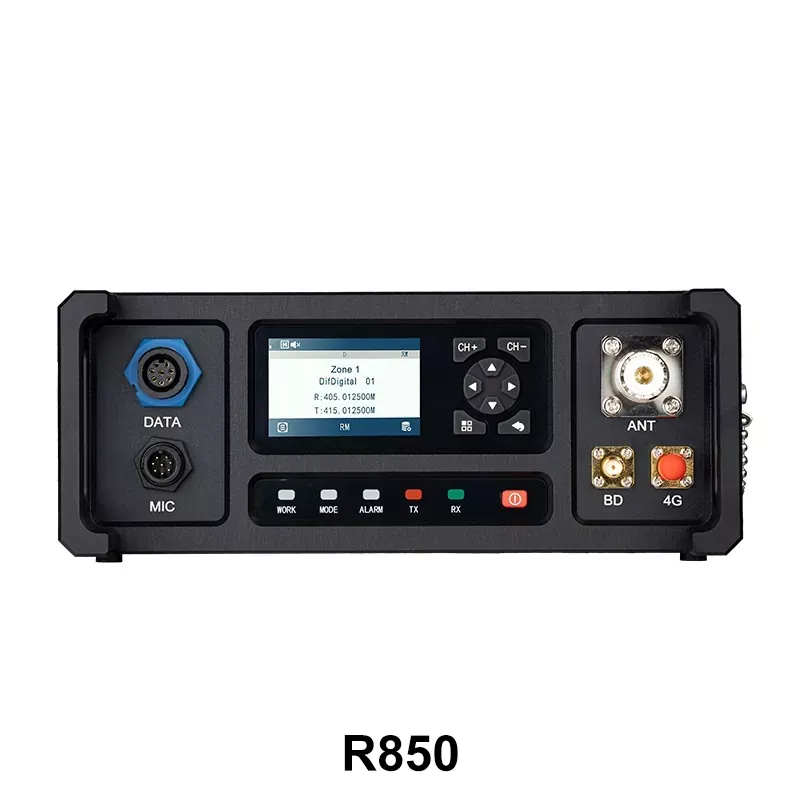

User-friendly Controls

Equipped with a 2.2-inch TFT LCD display and a set of navigation buttons, it enables a wide range of functional operations.

Compact Design,Easy to Carry

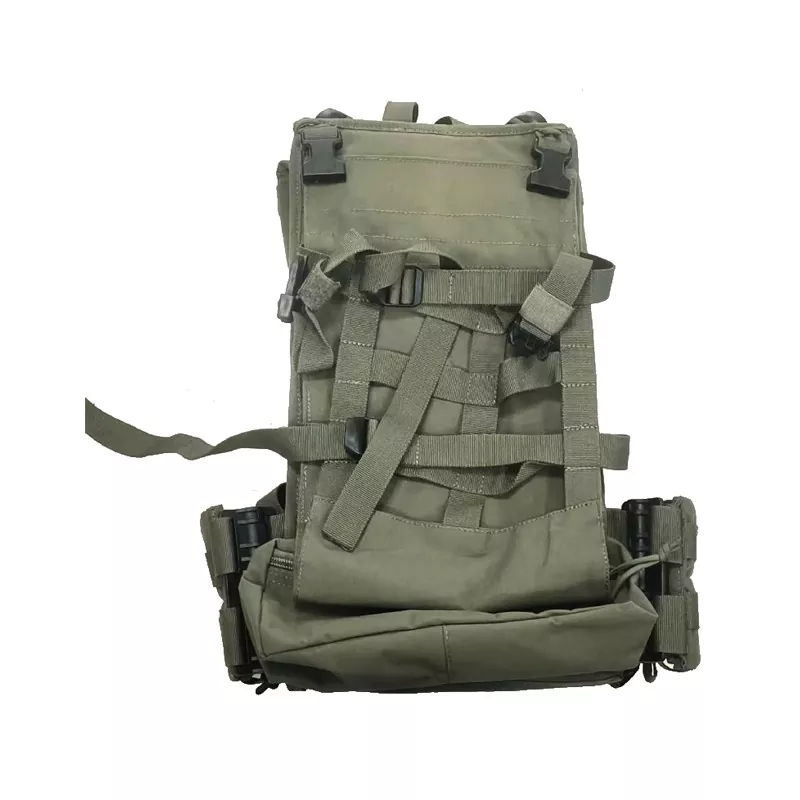

• Portable Usage:

Features a detachable，battery for easy carrying and mobility.

• Fixed Installation:

Connects to an external power source, supporting up to 45W of power.

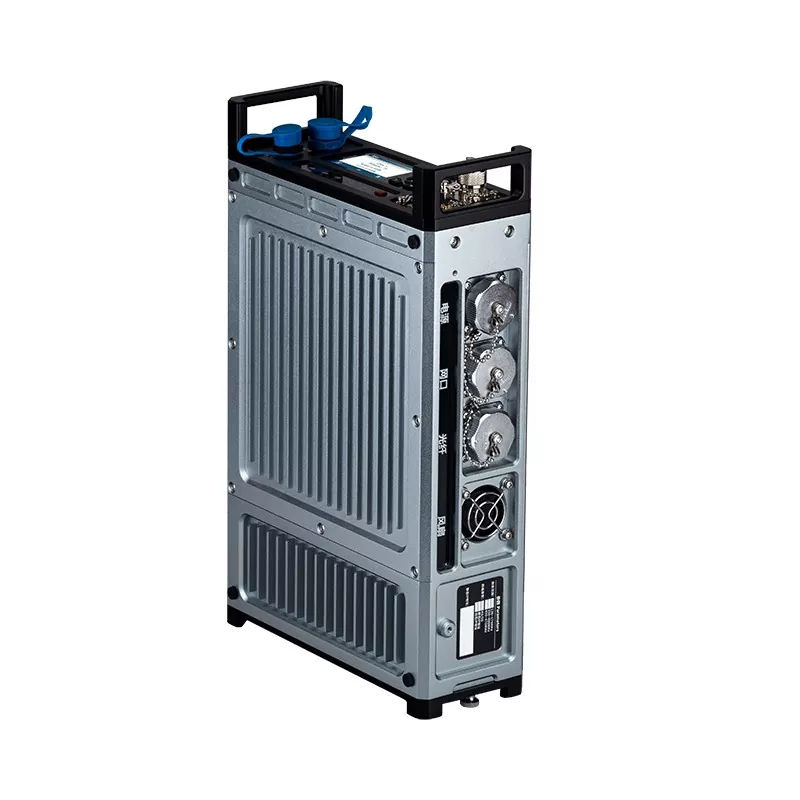

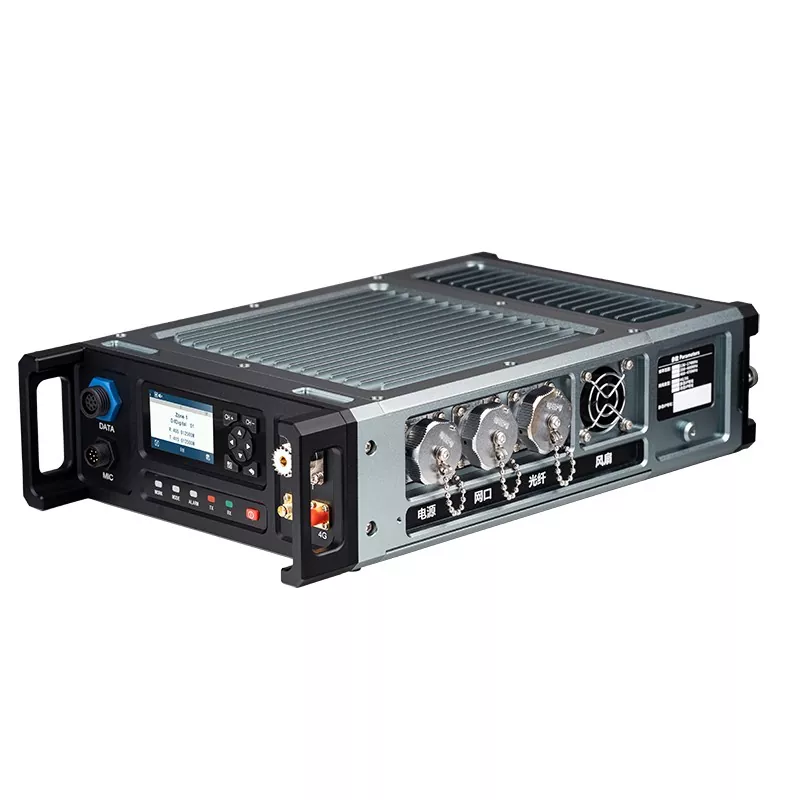

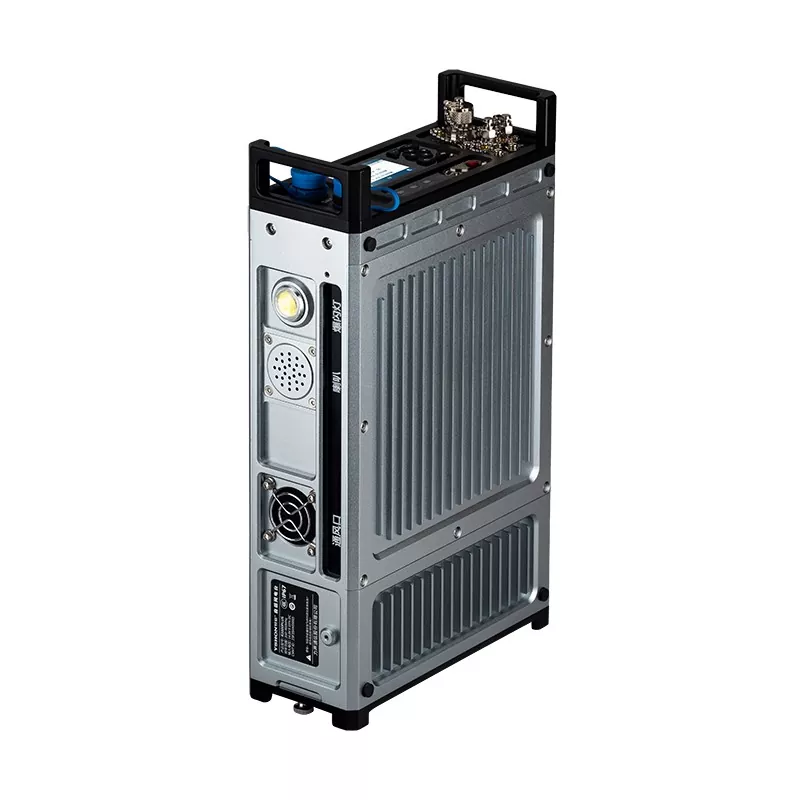

Rugged Design,Maximized Reliability

• Robust Structure:

Built in CNC-machined aluminum alloy.

• Durable Finish:

Anodized for corrosion and wear resistance.

• Weather-Proof:

Aviation-grade connecting ports

with IP67-rated rain-resistant body design.

• Protective Frame:

Shields interfaces, panels, and the body.

Rich Features to Meet Various Needs

• Flexible Networking:

Supports wired, wireless, and hybrid network configurations.

• Low Latency:

Maintains ≤0.5s delay after up to 4 cascading hops.

• Integrated Connectivity:

Built-in 4G LTE/5G modules.

• User-Friendly Power Supply:

Removable battery with low power alerts.

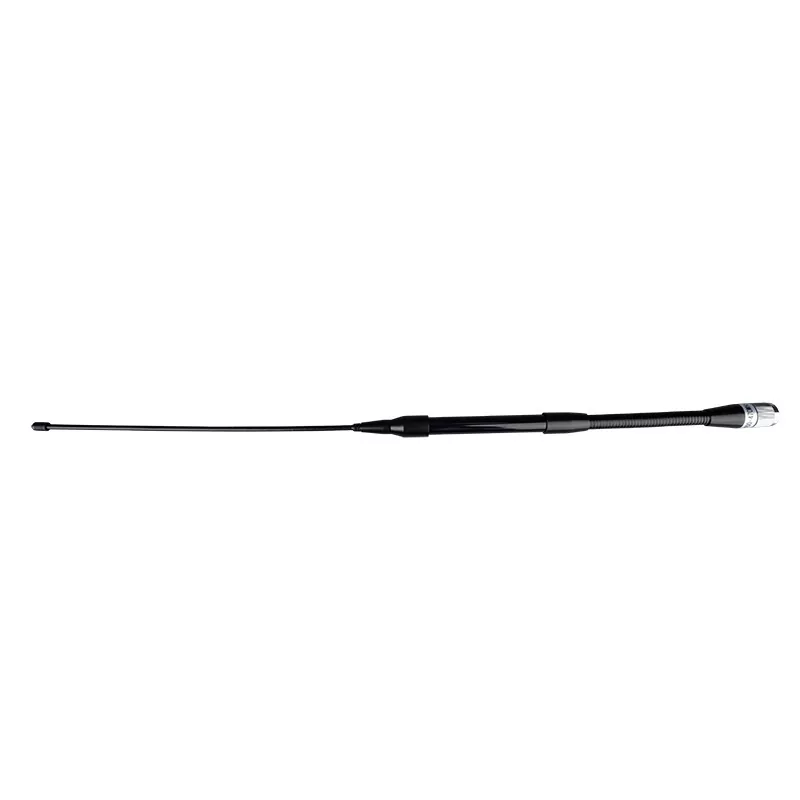

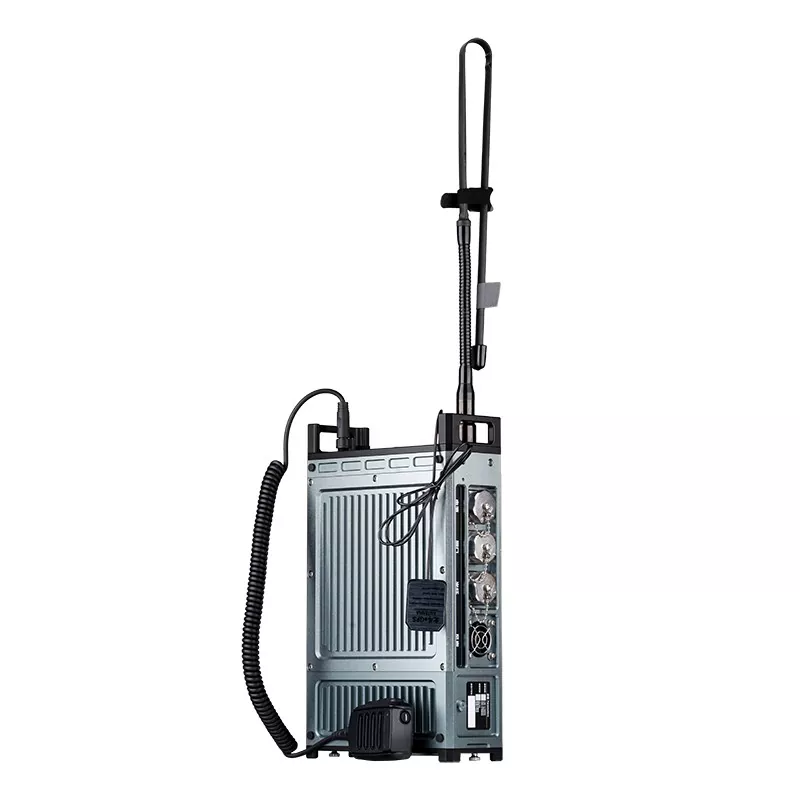

• High-Performance Antenna:

Equipped with a 1-meter long single three-section whip antenna for 5.5dBi gain.
